Revolutionizing 3D Printing: Overcoming G-code Limitations with Dynamic Control

Exploring Real-Time G-code Adjustments to Enhance 3D Printing Flexibility and Address Common Limitations in Existing Systems

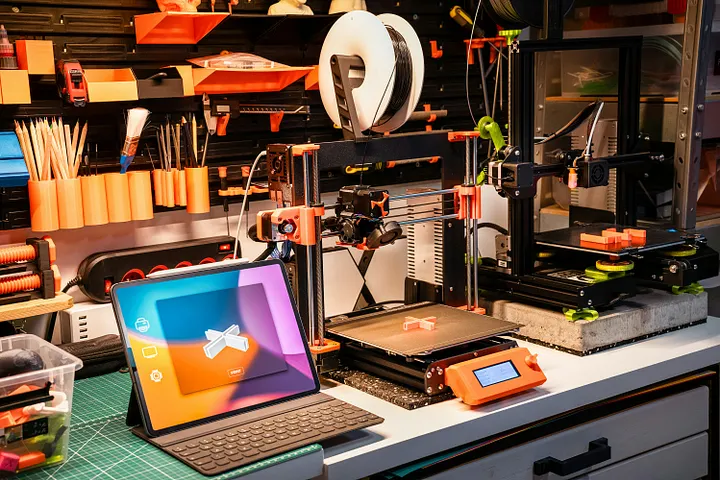

3D printer under operation — Photo by Jakub Żerdzicki on Unsplash

Introduction

3D printing has become a cornerstone of modern manufacturing and prototyping, but it still carries significant constraints. One of the biggest limitations is the inability to modify G-code once a print job has started.

This creates issues such as:

inability to add or change settings mid-print
difficulty inserting hardware inside prints
no easy way to correct errors without restarting

To address this, I began experimenting with real-time G-code control, exploring ways to bypass static G-code files and interact directly with the printer during operation.

Understanding the Current Landscape

Before building my own solution, I studied existing tools and resources.

Prusa Knowledge Base

PrusaSlicer allows inserting pauses or custom G-code at specific layers. This is useful for:

filament color swaps
embedding nuts, magnets, and bearings

Community Forums

Prusa3D forums contain scripts, tips, and user hacks for mid-print changes.

Reddit Discussions

Users often share practical mid-print modification methods, including:

real-time filament swaps
pausing to embed hardware

These insights helped shape a better understanding of the problem and the limitations of current tools.

Key Considerations for Dynamic G-code Adjustment

✔ Firmware Compatibility

Not all printers allow:

pausing and resuming safely
buffer flushing
arbitrary G-code injection

✔ Software Tools

Tools like PrusaSlicer, OrcaSlicer, or Cura allow scripted pauses and small custom G-code insertions, but they still rely on a static file.

✔ Manual G-code Editing

Advanced users can edit G-code manually, but this requires good knowledge of:

G-code syntax and semantics
the printer's motion planning behavior
how the firmware manages command buffers

All of this led me to explore something new…

My Approach: Real-time G-code Transmission with Python

To bypass the limitations of existing slicers, I experimented with sending G-code dynamically using Python and pyserial, communicating directly with the printer over a serial connection.

Step 1 — Sending Simple G-code

import serial
import time

# Configuration
SERIAL_PORT = 'COM4'  # Replace with your printer's serial port
BAUD_RATE = 38400    # Adjust to your printer's baud rate

def send_gcode_command(command, printer):
    """Send a G-code command to the 3D printer."""
    printer.write(f"{command}\n".encode('utf-8'))
    printer.flush()
    while True:
        response = printer.readline().decode('utf-8').strip()
        print(f"Response: {response}")
        if response == "ok":
            break

def main():
    try:
        with serial.Serial(SERIAL_PORT, BAUD_RATE, timeout=5) as printer:
            time.sleep(2)
            print("Connected to the printer.")

            send_gcode_command("G28", printer)  # Home all axes
            send_gcode_command("G1 X10 Y10 Z10 F3000", printer)  # Move

            print("Commands sent successfully.")
    except Exception as e:
        print(f"An error occurred: {e}")

if __name__ == "__main__":
    main()

Lesson learned

Using the wrong baud rate leads to freezing, ignored commands, and random disconnections. Choosing the correct baud rate makes communication much smoother.

Step 2 — Sending G-code Line-by-Line

import serial
import time
import os

SERIAL_PORT = 'COM4'
BAUD_RATE = 38400
GCODE_FILE = 'path/to/file.gcode'

def send_gcode_line(line, printer):
    printer.write(f"{line}\n".encode('utf-8'))
    printer.flush()
    response = printer.readline().decode('utf-8').strip()
    print(f"Response: {response}")

def monitor_and_print():
    last_position = 0

    try:
        with serial.Serial(SERIAL_PORT, BAUD_RATE, timeout=5) as printer:
            time.sleep(2)
            print("Connected to the printer.")

            while True:
                with open(GCODE_FILE, 'r') as gcode_file:
                    gcode_file.seek(last_position)
                    new_lines = gcode_file.readlines()

                    for line in new_lines:
                        line = line.strip()
                        if line and not line.startswith(';'):
                            print(f"Sending: {line}")
                            send_gcode_line(line, printer)

                    last_position = gcode_file.tell()

                time.sleep(1)
    except Exception as e:
        print(f"An error occurred: {e}")

if __name__ == "__main__":
    monitor_and_print()

This approach works, but motion can feel jerky because each line waits for an ok response before sending the next one.

Step 3 — Sending G-code in Batches (Much Faster)

import os
import time
import serial

GCODE_FILE = r'C:\path\to\your\gcode_file.gcode'
SERIAL_PORT = 'COM4'
BAUD_RATE = 38400

def send_gcode_batch(gcode_lines, printer):
    for line in gcode_lines:
        line = line.strip()
        if line and not line.startswith(';'):
            printer.write(f"{line}\n".encode('utf-8'))
    printer.flush()

def monitor_and_print_fast():
    try:
        with serial.Serial(SERIAL_PORT, BAUD_RATE, timeout=5) as printer:
            time.sleep(2)
            print("Connected to the printer.")

            last_modified_time = 0

            while True:
                current_modified_time = os.path.getmtime(GCODE_FILE)
                if current_modified_time > last_modified_time:
                    last_modified_time = current_modified_time
                    print(f"File modified. Reloading...")

                    with open(GCODE_FILE, 'r') as gcode_file:
                        gcode_lines = gcode_file.readlines()
                        print(f"Sending {len(gcode_lines)} lines...")
                        send_gcode_batch(gcode_lines, printer)

                    print("All commands sent.")
                else:
                    time.sleep(1)
    except Exception as e:
        print(f"An error occurred: {e}")

if __name__ == "__main__":
    monitor_and_print_fast()

With batched sending, movements become smoother and execution is faster. However, occasional freezes still occur.

Likely causes

buffer overflow in the printer firmware
missing ok acknowledgments
flow control and timing issues

Challenges & Future Work

Buffer Overflows

Sending too much G-code too quickly can overwhelm the printer's internal command queue.

Real-Time Reactivity

A proper UI or control interface is needed to pause, modify, and resume print jobs dynamically, without manually editing G-code files.

Firmware Differences

Different firmware (Marlin, Klipper, Repetier, etc.) handles command buffers and acknowledgements in different ways, so a robust solution must account for these differences.

Conclusion

This exploration demonstrates that dynamic G-code control is absolutely possible, but it requires careful management of:

serial communication timing
printer firmware behavior
command buffering and flow control

I'm excited to keep refining this system and move toward a more flexible, adaptive, and interactive 3D printing workflow.

Have you tried modifying G-code mid-print? I'd love to hear your experiences and ideas for making real-time control even more reliable.
